Brand Name: lilygo
Certification: None
Chip: ESP32
Compatible Audio & Video Equipment Style: Amplifier,player
Dimensions (WxHxD)): 100*33*20mm
Hign-concerned Chemical: None
Model Number: T-Beam NEO-6M
Origin: Mainland China
Package: Yes
Serial Chip: CH9102F
|
|

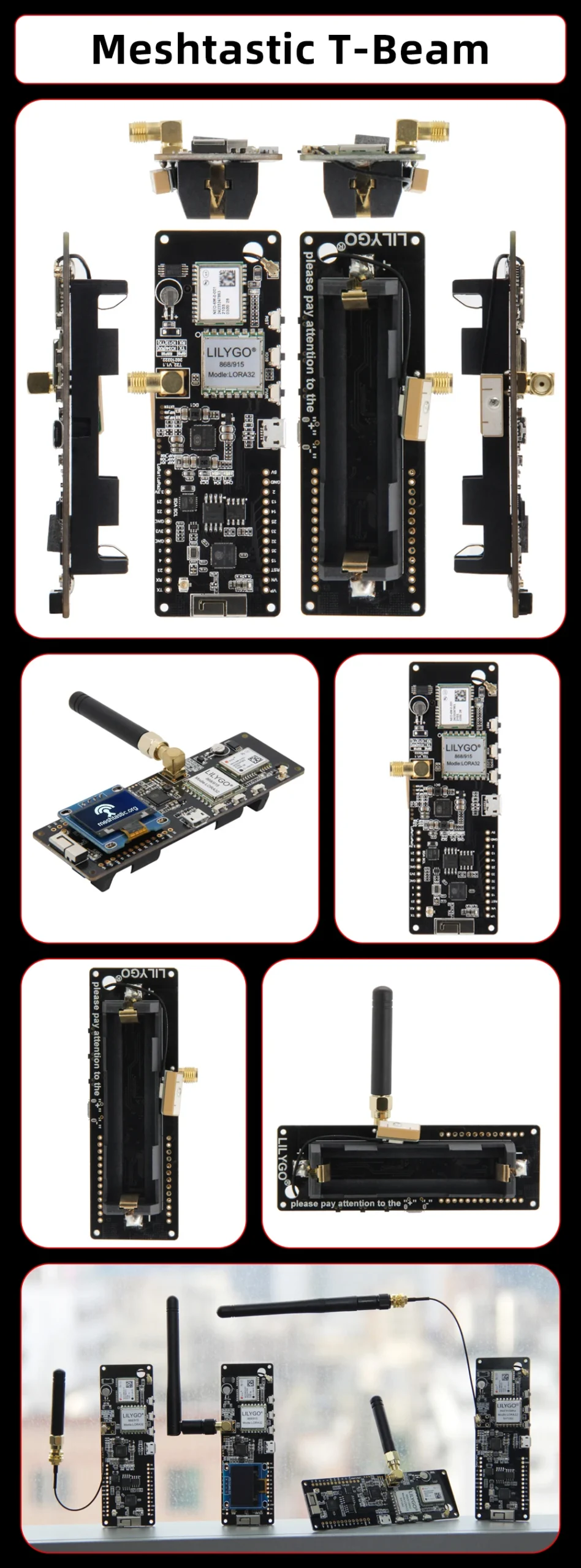

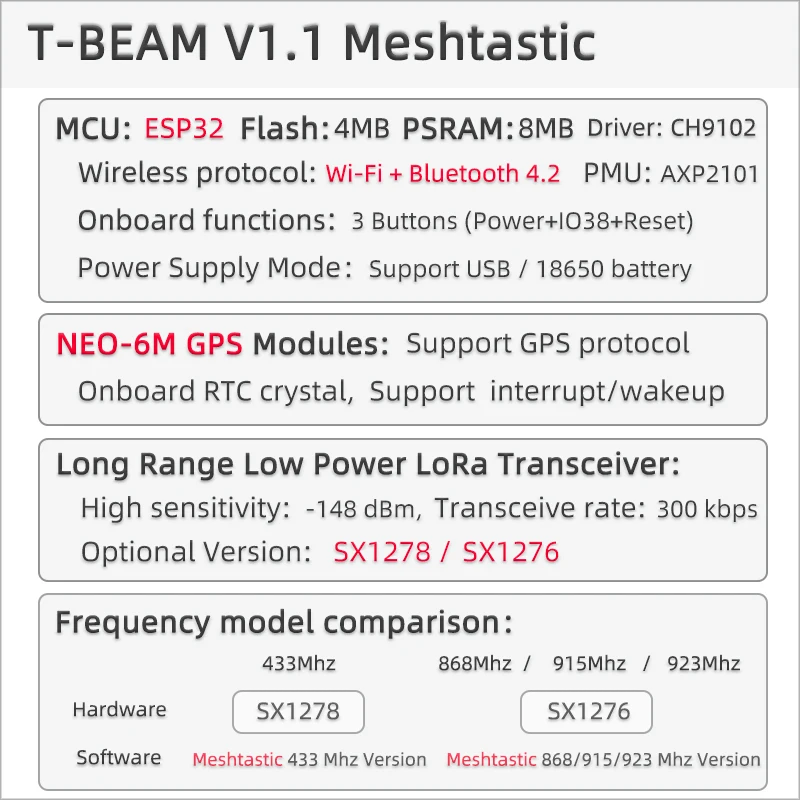

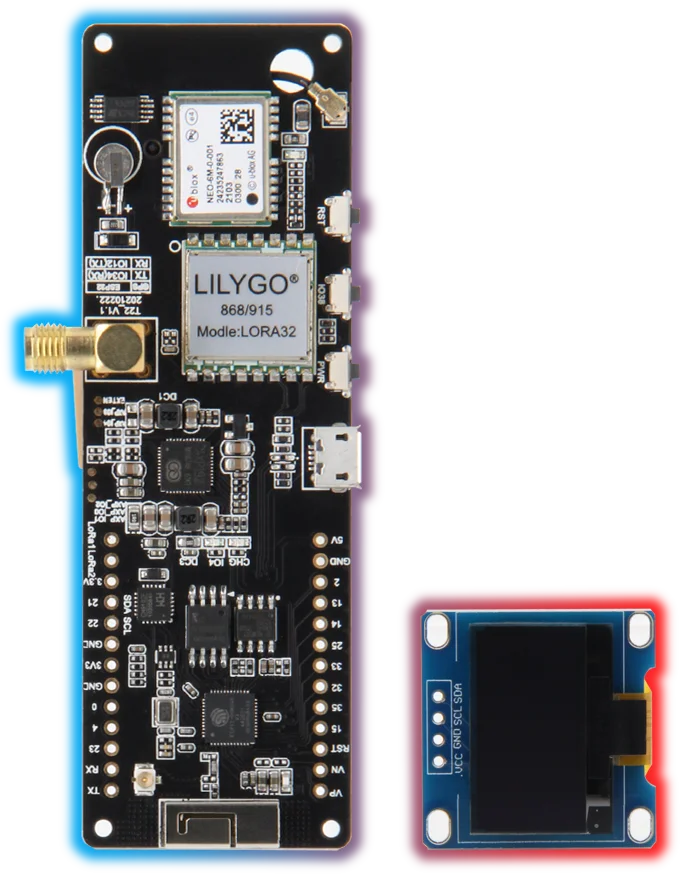

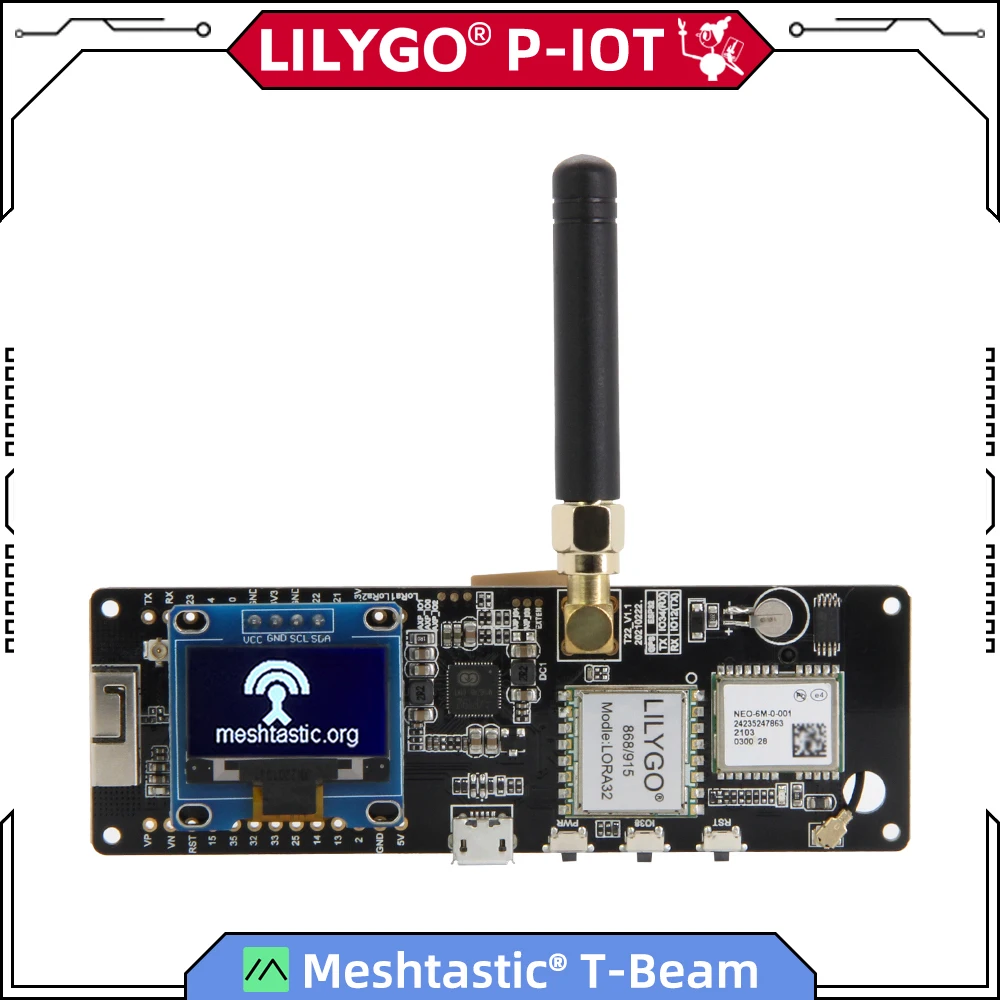

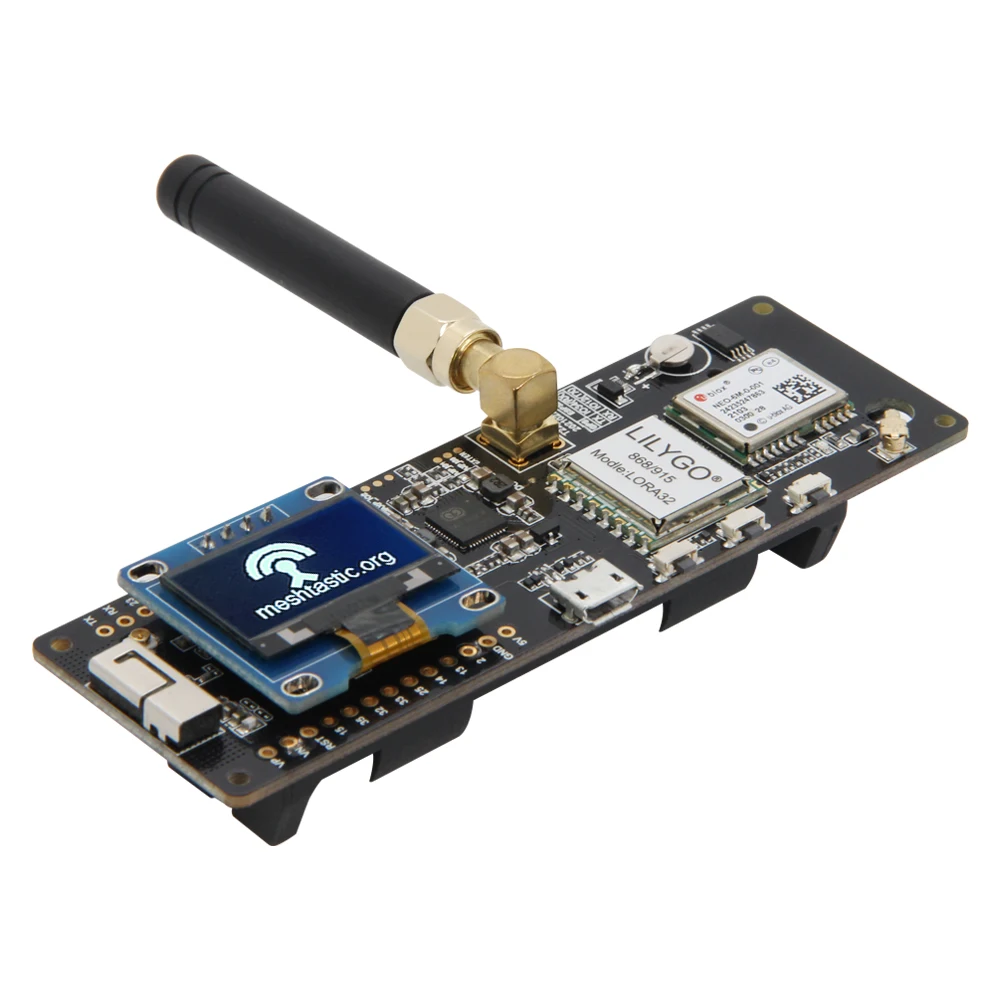

T-Beam V1. Meshtastic |
|||
| MCU | ESP32 | Flash | 4MB | |
| Serial Chip | CH9102 | PMU | AXP2101 | |
| Wireless protocol | Wi-Fi+Bluetooth 4.2 | |||
| Onboard functions | 3 Buttons(Power+IO38+Reset) | |||
| Power Supply Mode | Support USB | |||
| 18650 Battery | ||||
| NEO-6M GPS Modules | Support GPS Protocol | |||
| Onboard RTC Crystal | ||||
| Support Interrupt / Wakeup | ||||
| Long Range Low Power LoRa Transceiver | ||||
| High sensitivity | -148 dBm | Transceive rate | 300 kbps | |
| Optional Version | SX1278 / SX1276 | |||
| Frequency model comparison | ||||
| Hardware | SX1278 | SX1276 | ||
| Software |
Meshtastic433Mhz Version |
Meshtastic868/915/923 Mhz Version |
||
| 0.96 Inch OLED Parameters | ||||
| Size | 0.96 inch | Resolution | 128 * 64px | |
| Driver IC | SSD1306 | Color | White | |
More information |
|
|

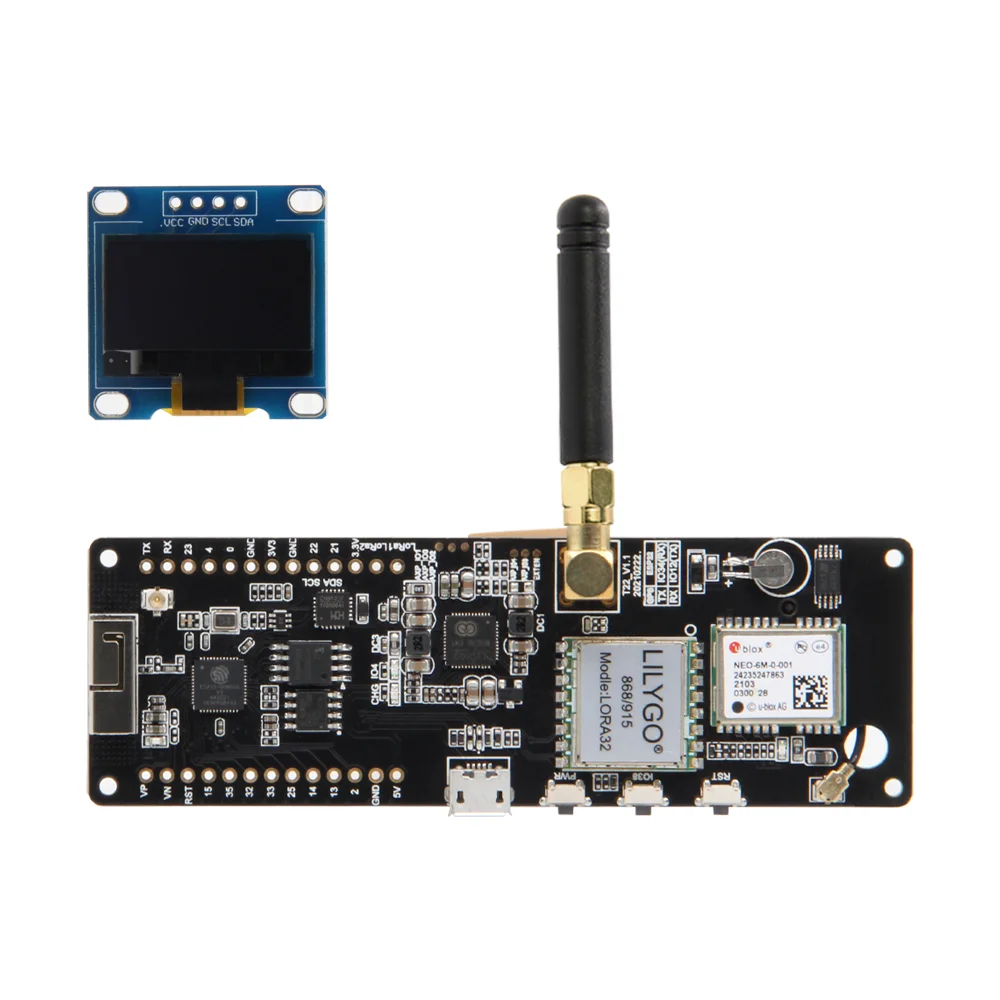

What’s in the box |

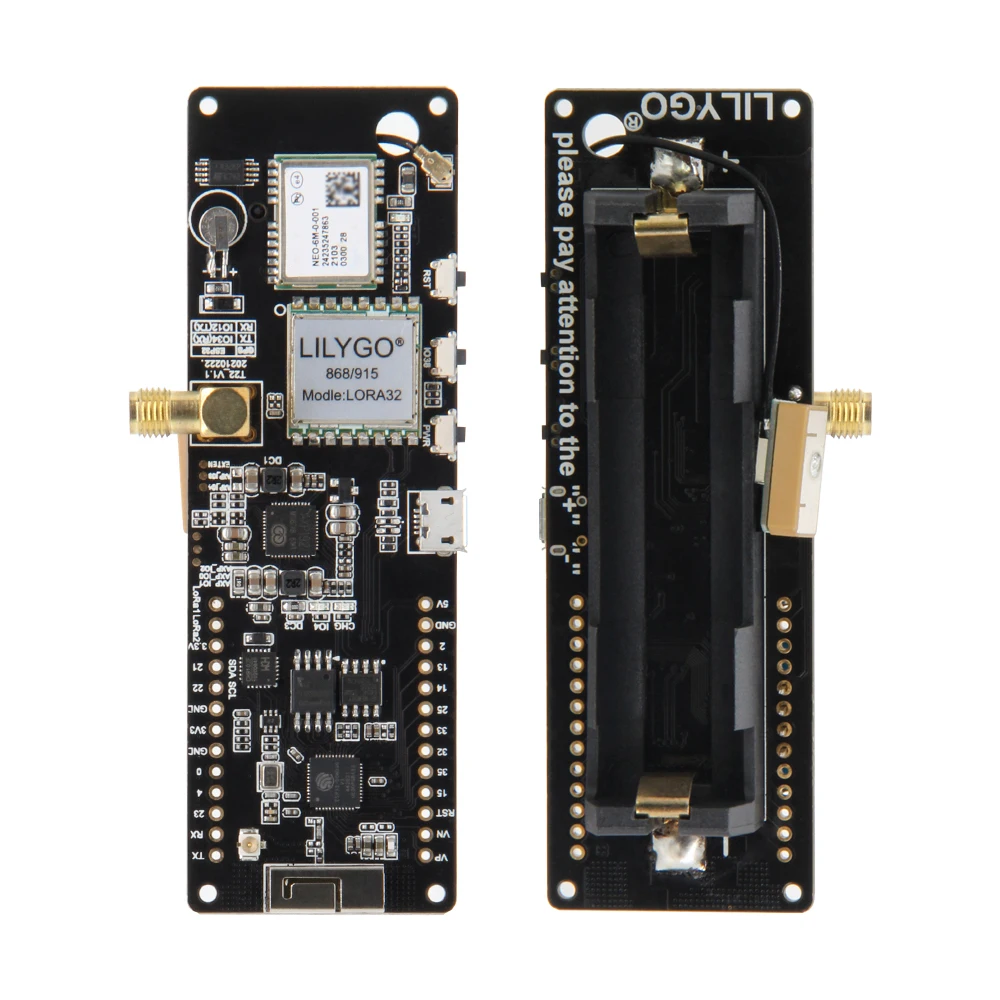

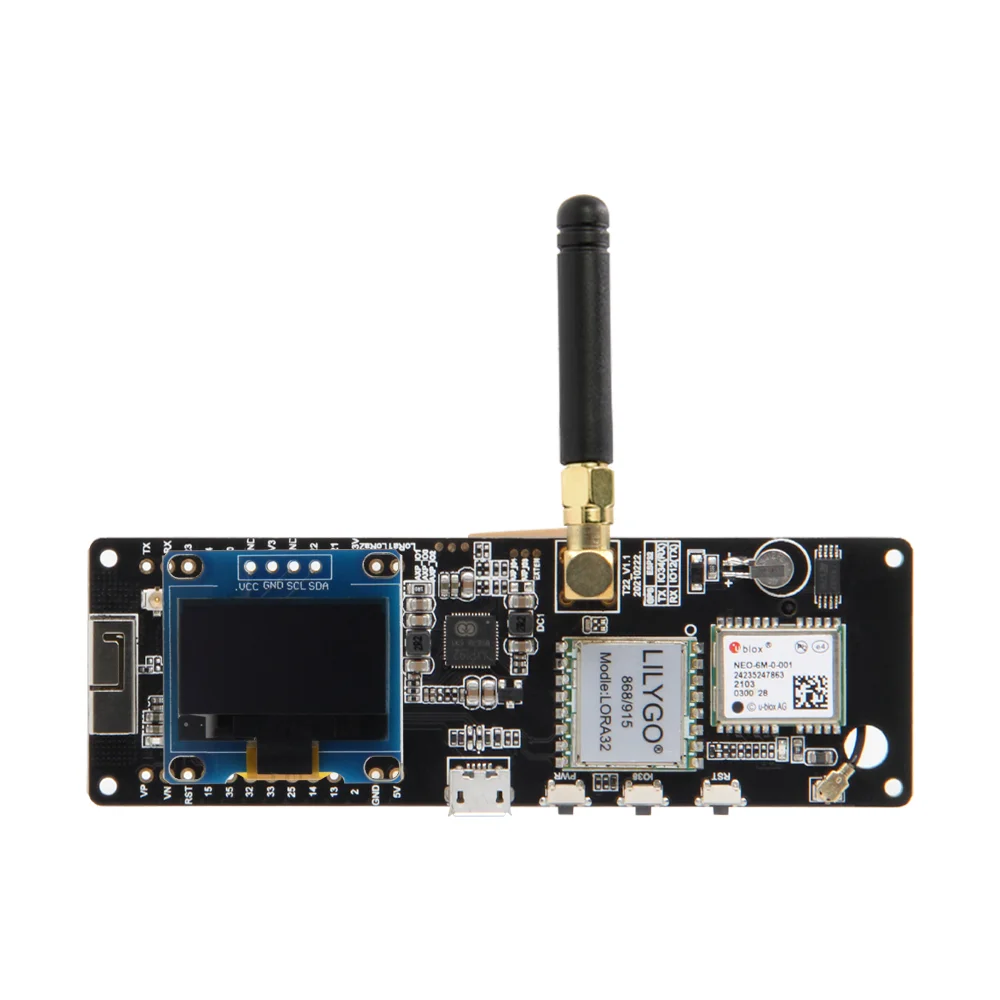

| 1 X T-Beam V1.1 CH9102 | |

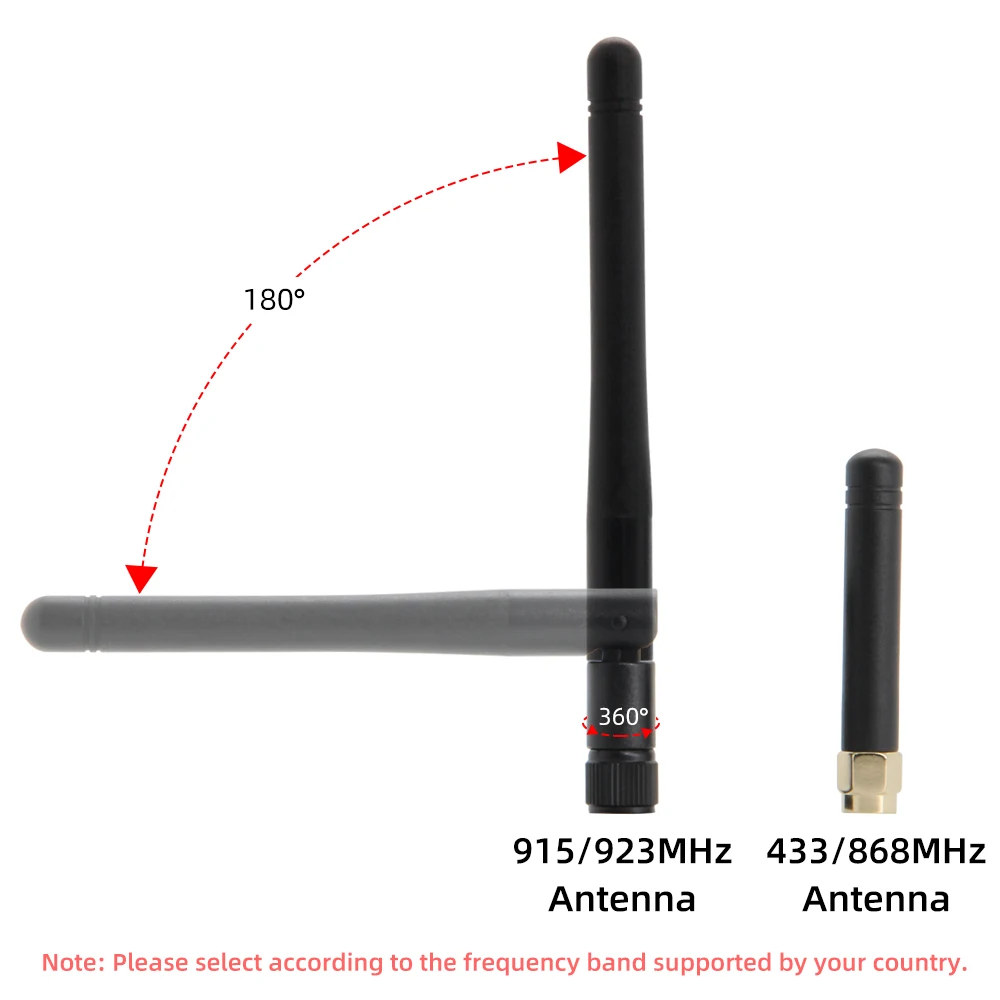

| 1 X LoRa Antenna | |
| 1 X 0.96 inch 128X64 OLED | |
| 2 X 2.54mm Male Pin (1*13P) | |

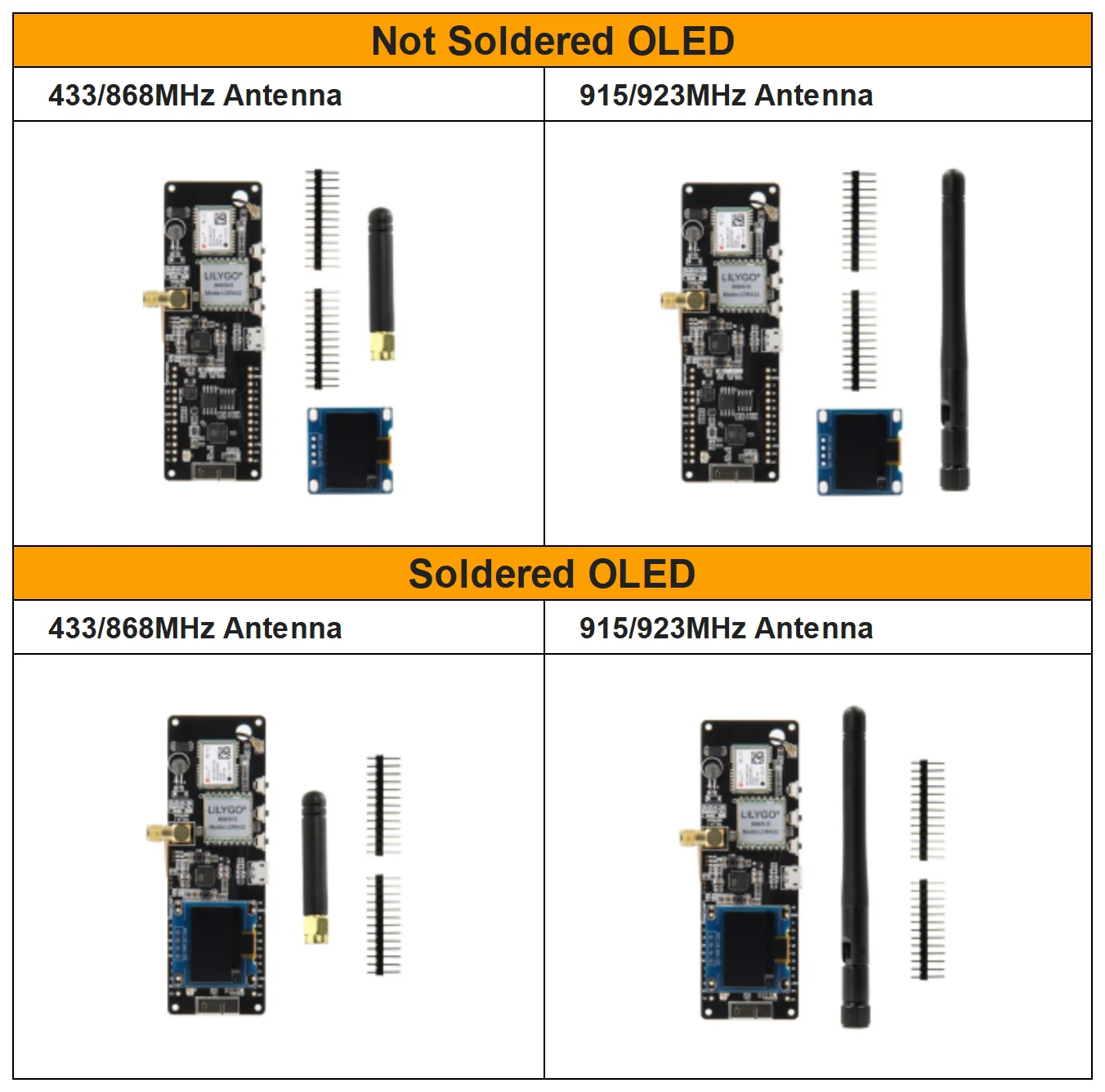

| Note: Solder version has welded OLED!!! |
| Color | Solder OLED, Not Solder OLED |
|---|---|
| Ships From | United States, GERMANY |
| Version | 915MHz, 433MHz, 868MHz |
